User Journey

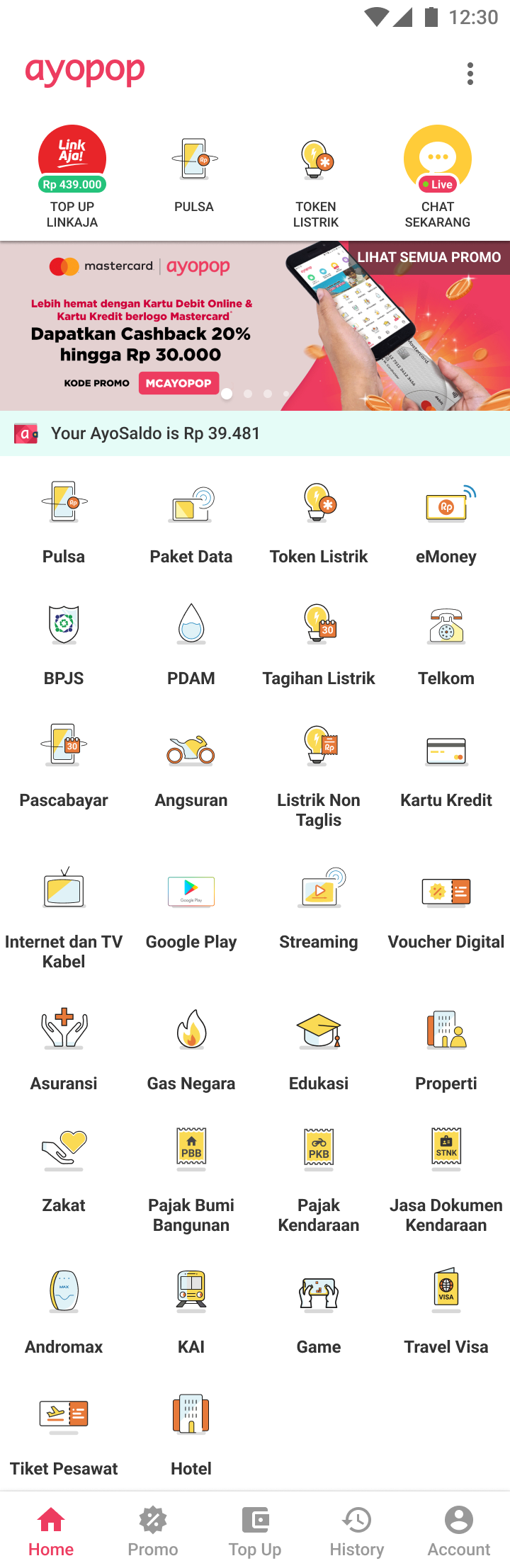

User can choose Tiket Pesawat on the menu

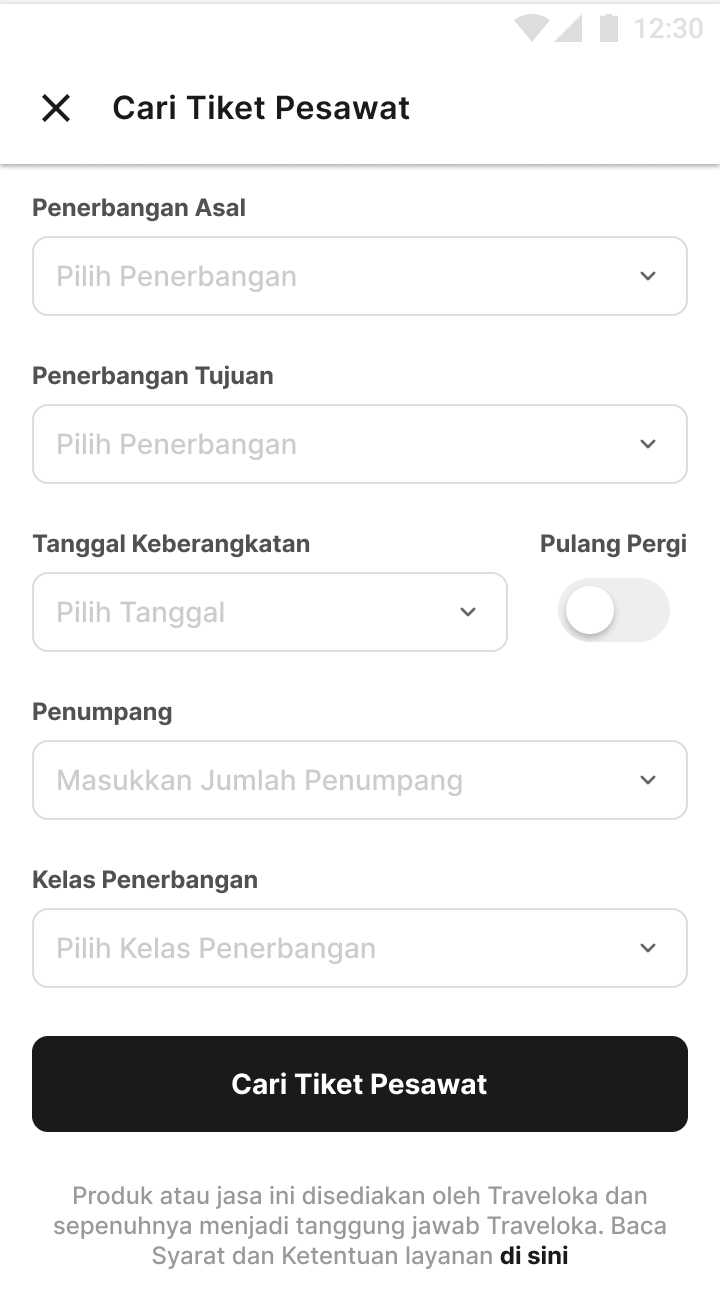

The user will select the following on this screen:

Departure airport and destination
Select the date of the flight
If the user needs a round-trip ticket, the user needs to switch the toggle and select the return date as well
Choose the number of passengers
Once the user has filled all the required fields. click on "Cari Tiket Pesawat" button

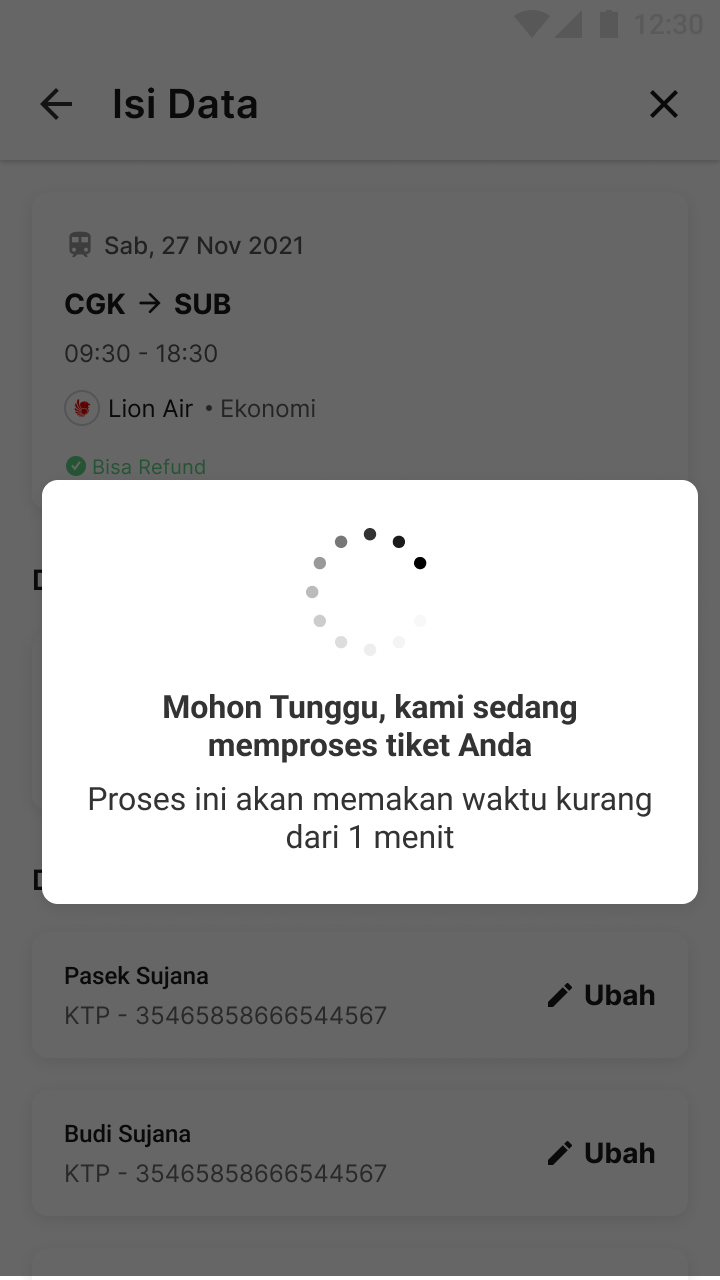

This is the last screen for booking a flight ticket. Ayoconnect will send the callback to the partner and the user will be redirected to the payment confirmation page

API Documentation

Enrollment API

📘
Enrollment Registration Endpoint
/api/v2/enrollment/register

{
  "partnerId" : "partner-id",
  "account_number" : "211123",
  "product_code" : "product-code",
  "ref_number" : "567894039"
}

{
    "responseCode": 200,
    "success": true,
    "message": {
        "id": "Success.",
        "en": "Success."
    },
    "data": {
        "ayoconnect_ref_number": "23289",
        "accountNumber": "211123",
        "productName": "product-name",
        "productCode": "product-code",
        "category": "Tiket Pesawat",
        "url": "{base-url}?ID=16811872195565"
    }
}

Callback API

{
    "responseCode": 200,
    "success": true,
    "message": {
        "ID": "success",
        "EN": "success"
    },
    "data": {
        "ayoconnectRefNumber": "475",
        "enrollmentId": "99946728",
        "refNumber": "567894039",
        "extraDetails": []
    }
}

Inquiry

{
  "partnerId": "ayopop",
  "accountNumber": "99946728",
  "productCode": "product-code"
}

{
    "responseCode": 300,
    "success": true,
    "message": {
        "ID": "Inkuiri berhasil",
        "EN": "Inquiry is successful"
    },
    "data": {
        "inquiryId": 8682016,
        "accountNumber": "99946728",
        "customerName": "Test User",
        "productName": "product-name",
        "productCode": "product-code",
        "category": "Tiket Pesawat",
        "amount": 1204200,
        "totalAdmin": 1000,
        "processingFee": 0,
        "denom": "",
        "validity": "",
        "customerDetails": [
            {
                "key": "Tanggal & Waktu Pembayaran",
                "value": "11 Apr 2023 | 11:53"
            },
            {
                "key": "Nama Pelanggan",
                "value": "Test User"
            },
            {
                "key": "Nomor HP",
                "value": "628111111111111"
            },
            {
                "key": "Email",
                "value": "gilang@gmail.com"
            }
        ],
        "billDetails": [
            {
                "billId": "1",
                "billInfo": [],
                "isMandatory": true,
                "key": "Jumlah Tagihan",
                "value": 1204200
            },
            {
                "billId": "0",
                "billInfo": [],
                "isMandatory": true,
                "key": "Biaya Administrasi",
                "value": 1000
            }
        ],
        "productDetails": [
            {
                "key": "Kode Booking",
                "value": "99946728"
            }
        ],
        "extraFields": [
            {
                "key": "passengerDetails",
                "value": [
                    {
                        "key": "Penumpang1",
                        "value": [
                            {
                                "key": "Sapaan",
                                "value": "MR"
                            },
                            {
                                "key": "Nama",
                                "value": "Test User"
                            },
                            {
                                "key": "Jenis Kelamin",
                                "value": "M"
                            },
                            {
                                "key": "Tanggal Lahir",
                                "value": "04-14-2016"
                            },
                            {
                                "key": "Negara Asal",
                                "value": "N/A"
                            },
                            {
                                "key": "Nomor ID",
                                "value": "N/A"
                            },
                            {
                                "key": "Tanggal Kadaluwarsa",
                                "value": "N/A"
                            },
                            {
                                "key": "Tanggal Penerbitan",
                                "value": "N/A"
                            },
                            {
                                "key": "Tipe Dokumen",
                                "value": "N/A"
                            },
                            {
                                "key": "Kewarganegaraan",
                                "value": "ID"
                            },
                            {
                                "key": "Tempat Lahir",
                                "value": "N/A"
                            },
                            {
                                "key": "Tipe Bagasi",
                                "value": "KG"
                            },
                            {
                                "key": "Jumlah Bagasi",
                                "value": "1"
                            },
                            {
                                "key": "Berat Bagasi",
                                "value": "20"
                            },
                            {
                                "key": "Pilihan Makan",
                                "value": "N/A"
                            }
                        ]
                    }
                ]
            },
            {
                "key": "ticketDetails",
                "value": [
                    {
                        "key": "Route1",
                        "value": [
                            {
                                "key": "Waktu Berangkat",
                                "value": "1845"
                            },
                            {
                                "key": "Waktu Tiba",
                                "value": "2015"
                            },
                            {
                                "key": "Tanggal Berangkat",
                                "value": "04-11-2023"
                            },
                            {
                                "key": "Tanggal Tiba",
                                "value": "04-11-2023"
                            },
                            {
                                "key": "Kelas Kursi",
                                "value": "ECONOMY"
                            },
                            {
                                "key": "Sub Kelas",
                                "value": "G"
                            },
                            {
                                "key": "Bandara Asal",
                                "value": "CGK"
                            },
                            {
                                "key": "Bandara Tujuan",
                                "value": "SUB"
                            },
                            {
                                "key": "Brand Penerbangan",
                                "value": "IU"
                            },
                            {
                                "key": "Kode Penerbangan",
                                "value": "IU-342"
                            },
                            {
                                "key": "Terminal Keberangkatan",
                                "value": ""
                            },
                            {
                                "key": "Terminal Kedatangan",
                                "value": ""
                            }
                        ]
                    }
                ]
            }
        ]
    }
}

Payment

{
  "partnerId": "partner-id",
  "productCode": "product-code",
  "accountNumber": "688959",
  "inquiryId": 5388773,
  "amount": 17500,
  "refNumber": "AYE9999999"
}

{
    "responseCode": 0,
    "success": true,
    "message": {
        "ID": "Transaksi Anda Telah Berhasil",
        "EN": "Your transaction was successful"
    },
    "data": {
        "requestId": "160000122101",
        "refNumber": PLANEREF123,
        "transactionId": 15075445,
        "accountNumber": "89567304",
        "amount": 9924600,
        "totalAdmin": 2000,
        "productCode": "product-code",
        "productName": "product-name",
        "category": "Tiket Pesawat",
        "token": "89567304",
        "customerName": "",
        "validity": "",
        "customerDetails": [
            {
                "key": "Tanggal & Waktu Pembayaran",
                "value": "05 Jan 2021 | 16:42"
            },
            {
                "key": "Nama Pelanggan",
                "value": "TEST"
            },
            {
                "key": "Nomor HP",
                "value": "6281808080808"
            },
            {
                "key": "Email",
                "value": "test@example.com"
            }
        ],
        "billDetails": [
            {
                "billId": "1",
                "billInfo": [],
                "key": "Jumlah Tagihan",
                "isMandatory": true,
                "value": 9924600
            },
            {
                "billId": "0",
                "billInfo": [],
                "key": "Biaya Administrasi",
                "isMandatory": true,
                "value": 2000
            }
        ],
        "productDetails": [
            {
                "key": "Nomor Referensi",
                "value": "Ayo000001"
            },
            {
               "key": "Kode Booking",
               "value": "89567304"
            },
        ],
        "extraFields": [
            {
                "key": "passengerDetails",
                "value": [
                    {
                        "key": "Penumpang1",
                        "value": [
                            {
                                "key": "Sapaan",
                                "value": "MR"
                            },
                            {
                                "key": "Nama",
                                "value": "TEST"
                            },
                            {
                                "key": "Jenis Kelamin",
                                "value": "M"
                            },
                            {
                                "key": "Tanggal Lahir",
                                "value": "02-15-1998"
                            },
                            {
                                "key": "Negara Asal",
                                "value": "N/A"
                            },
                            {
                                "key": "Nomor ID",
                                "value": "1171023011810006"
                            },
                            {
                                "key": "Tanggal Kadaluwarsa",
                                "value": "N/A"
                            },
                            {
                                "key": "Tanggal Penerbitan",
                                "value": "N/A"
                            },
                            {
                                "key": "Tipe Dokumen",
                                "value": "NATIONAL_ID"
                            },
                            {
                                "key": "Kewarganegaraan",
                                "value": "ID"
                            },
                            {
                                "key": "Tempat Lahir",
                                "value": "N/A"
                            },
                            {
                                "key": "Tipe Bagasi",
                                "value": "KG"
                            },
                            {
                                "key": "Jumlah Bagasi",
                                "value": "1"
                            },
                            {
                                "key": "Berat Bagasi",
                                "value": "20"
                            },
                            {
                                "key": "Pilihan Makan",
                                "value": "N/A"
                            }
                        ]
       {
                            "key": "Penumpang2",
                            "value": [
                                {
                                    "key": "Sapaan",
                                    "value": "MRS"
                                },
                                {
                                    "key": "Nama",
                                    "value": "TEST ONE"
                                },
                                {
                                    "key": "Jenis Kelamin",
                                    "value": "F"
                                },
                                {
                                    "key": "Tanggal Lahir",
                                    "value": "02-15-1996"
                                },
                                {
                                    "key": "Negara Asal",
                                    "value": "N/A"
                                },
                                {
                                    "key": "Nomor ID",
                                    "value": "1171023011810004"
                                },
                                {
                                    "key": "Tanggal Kadaluwarsa",
                                    "value": "N/A"
                                },
                                {
                                    "key": "Tanggal Penerbitan",
                                    "value": "N/A"
                                },
                                {
                                    "key": "Tipe Dokumen",
                                    "value": "NATIONAL_ID"
                                },
                                {
                                    "key": "Kewarganegaraan",
                                    "value": "ID"
                                },
                                {
                                    "key": "Tempat Lahir",
                                    "value": "N/A"
                                },
                                {
                                    "key": "Tipe Bagasi",
                                    "value": "KG"
                                },
                                {
                                    "key": "Jumlah Bagasi",
                                    "value": "1"
                                },
                                {
                                    "key": "Berat Bagasi",
                                    "value": "20"
                                },
                                {
                                    "key": "Pilihan Makan",
                                    "value": "N/A"
                                }
                            ]
       {
                                "key": "Penumpang3",
                                "value": [
                                    {
                                        "key": "Sapaan",
                                        "value": "MISS"
                                    },
                                    {
                                        "key": "Nama",
                                        "value": "TEST TWO"
                                    },
                                    {
                                        "key": "Jenis Kelamin",
                                        "value": "F"
                                    },
                                    {
                                        "key": "Tanggal Lahir",
                                        "value": "02-15-2017"
                                    },
                                    {
                                        "key": "Negara Asal",
                                        "value": "N/A"
                                    },
                                    {
                                        "key": "Nomor ID",
                                        "value": "1171023011810001"
                                    },
                                    {
                                        "key": "Tanggal Kadaluwarsa",
                                        "value": "N/A"
                                    },
                                    {
                                        "key": "Tanggal Penerbitan",
                                        "value": "N/A"
                                    },
                                    {
                                        "key": "Tipe Dokumen",
                                        "value": "NATIONAL_ID"
                                    },
                                    {
                                        "key": "Kewarganegaraan",
                                        "value": "ID"
                                    },
                                    {
                                        "key": "Tempat Lahir",
                                        "value": "N/A"
                                    },
                                    {
                                        "key": "Tipe Bagasi",
                                        "value": "KG"
                                    },
                                    {
                                        "key": "Jumlah Bagasi",
                                        "value": "1"
                                    },
                                    {
                                        "key": "Berat Bagasi",
                                        "value": "20"
                                    },
                                    {
                                        "key": "Pilihan Makan",
                                        "value": "N/A"
                                    }
                                ]
                            }
                        ]
                    }
                ]
            },
            {
                "key": "ticketDetails",
                "value": "[
                    {
                    "key": "Route1",
                    "value": [
                        {
                            "key": "Waktu Berangkat",
                            "value": "1630"
                        },
                        {
                            "key": "Waktu Tiba",
                            "value": "1930"
                        },
                        {
                            "key": "Tanggal Berangkat",
                            "value": "10-20-2022"
                        },
                        {
                            "key": "Tanggal Tiba",
                            "value": "10-20-2022"
                        },
                        {
                            "key": "Kelas Kursi",
                            "value": "OTHERS"
                        },
                        {
                            "key": "Sub Kelas",
                            "value": "Y"
                        },
                        {
                            "key": "Kode PNR",
                            "value": "HIN55U"
                        },
                        {
                            "key": "Bandara Asal",
                            "value": "CGK"
                        },
                        {
                            "key": "Bandara Tujuan",
                            "value": "DPS"
                        },
                        {
                            "key": "Brand Penerbangan",
                            "value": "GA"
                        },
                        {
                            "key": "Kode Penerbangan",
                            "value": "GA-420"
                        },
                        {
                            "key": "Terminal Keberangkatan",
                            "value": "2"
                        },
                        {
                            "key": "Terminal Kedatangan",
                            "value": "Domestic"
                        }
                    ]
       {
                        "key": "Route2",
                        "value": [
                            {
                                "key": "Waktu Berangkat",
                                "value": "1840"
                            },
                            {
                                "key": "Waktu Tiba",
                                "value": "1945"
                            },
                            {
                                "key": "Tanggal Berangkat",
                                "value": "10-30-2022"
                            },
                            {
                                "key": "Tanggal Tiba",
                                "value": "10-30-2022"
                            },
                            {
                                "key": "Kelas Kursi",
                                "value": "OTHERS"
                            },
                            {
                                "key": "Sub Kelas",
                                "value": "Y"
                            },
                            {
                                "key": "Kode PNR",
                                "value": "HIN55U"
                            },
                            {
                                "key": "Bandara Asal",
                                "value": "DPS"
                            },
                            {
                                "key": "Bandara Tujuan",
                                "value": "CGK"
                            },
                            {
                                "key": "Brand Penerbangan",
                                "value": "GA"
                            },
                            {
                                "key": "Kode Penerbangan",
                                "value": "GA-417"
                            },
                            {
                                "key": "Terminal Keberangkatan",
                                "value": "Domestic"
                            },
                            {
                                "key": "Terminal Kedatangan",
                                "value": "2"
                            },
                        ]"
                    ]
                }
            }
